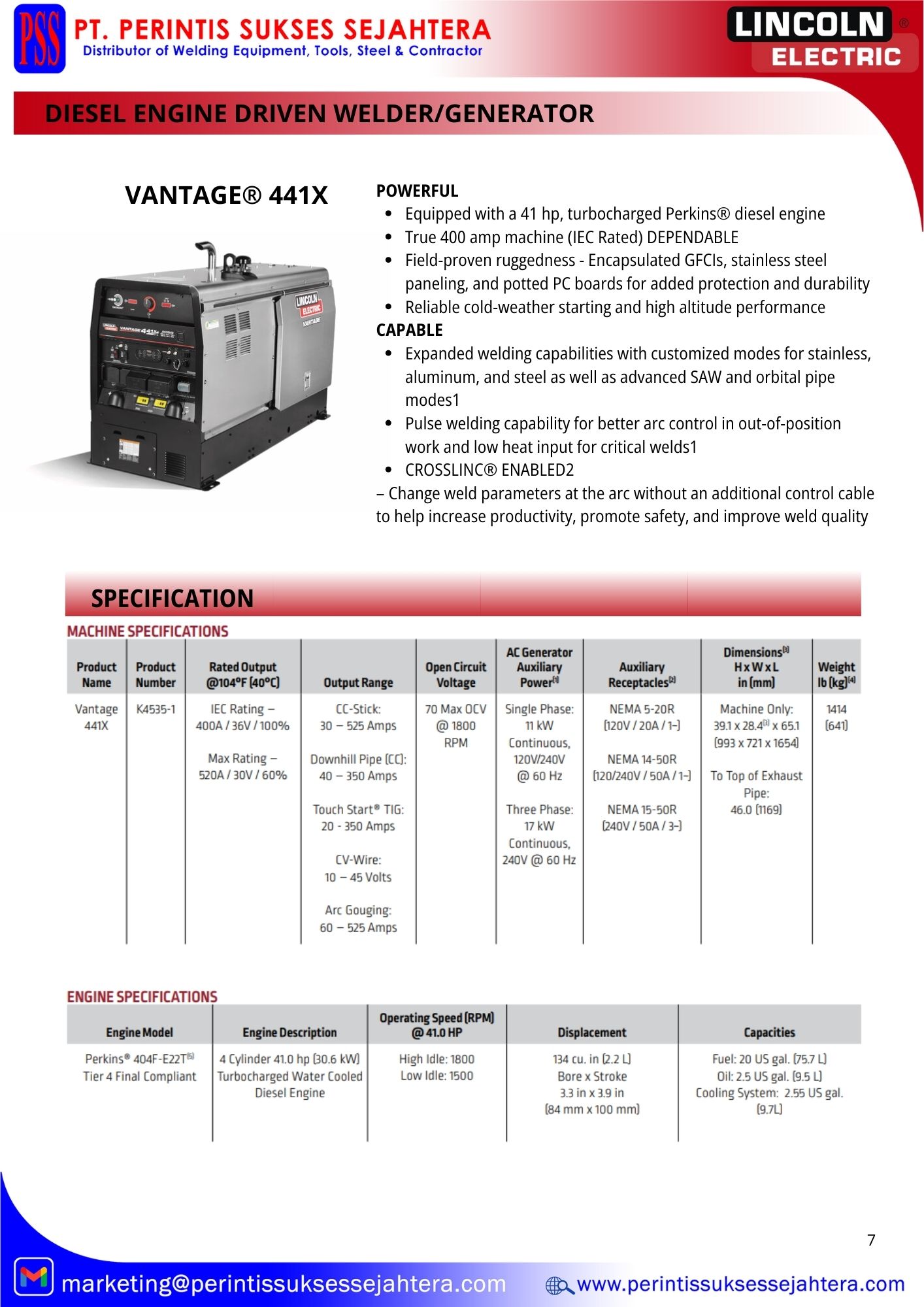

POWERFUL
Equipped with a 41 hp, turbocharged Perkins® diesel engine
True 400 amp machine (IEC Rated) DEPENDABLE
Field-proven ruggedness - Encapsulated GFCIs, stainless steel paneling, and potted PC boards for added protection and durability
Reliable cold-weather starting and high altitude performance
CAPABLE
Expanded welding capabilities with customized modes for stainless, aluminum, and steel as well as advanced SAW and orbital pipe modes1
Pulse welding capability for better arc control in out-of-position work and low heat input for critical welds1
CROSSLINC® ENABLED2
– Change weld parameters at the arc without an additional control cable to help increase productivity, promote safety, and improve weld quality
| PRODUCT NAME | Vantage 441X |
| PRODUCT NUMBER | K4535-1 |
| Rated Output @104°F (40°C) | IEC Rating - 400A/36V/100% |
| Output Range | CC-Stick: 30 - 525 Amps |
Voltage Open Circuit | 70 Max OCV @1800 RPM |
AC Generator Auxiliary Power¹¹ | Single Phase : 11 kW Continous : 120V/240V @ 60 Hz
Three Phase: 17 kW Continuous, 240V @ 60 Hz |
Auxiliary Receptacles | NEMA 5-20R [120V/20A/1-] |
Dimensions HxWxL in (mm) | Machine Only: 39.1 x 28.4 x 65.1 [993 x 721 x 1654] |
Weight lb (kg) | 1414 (641) |
