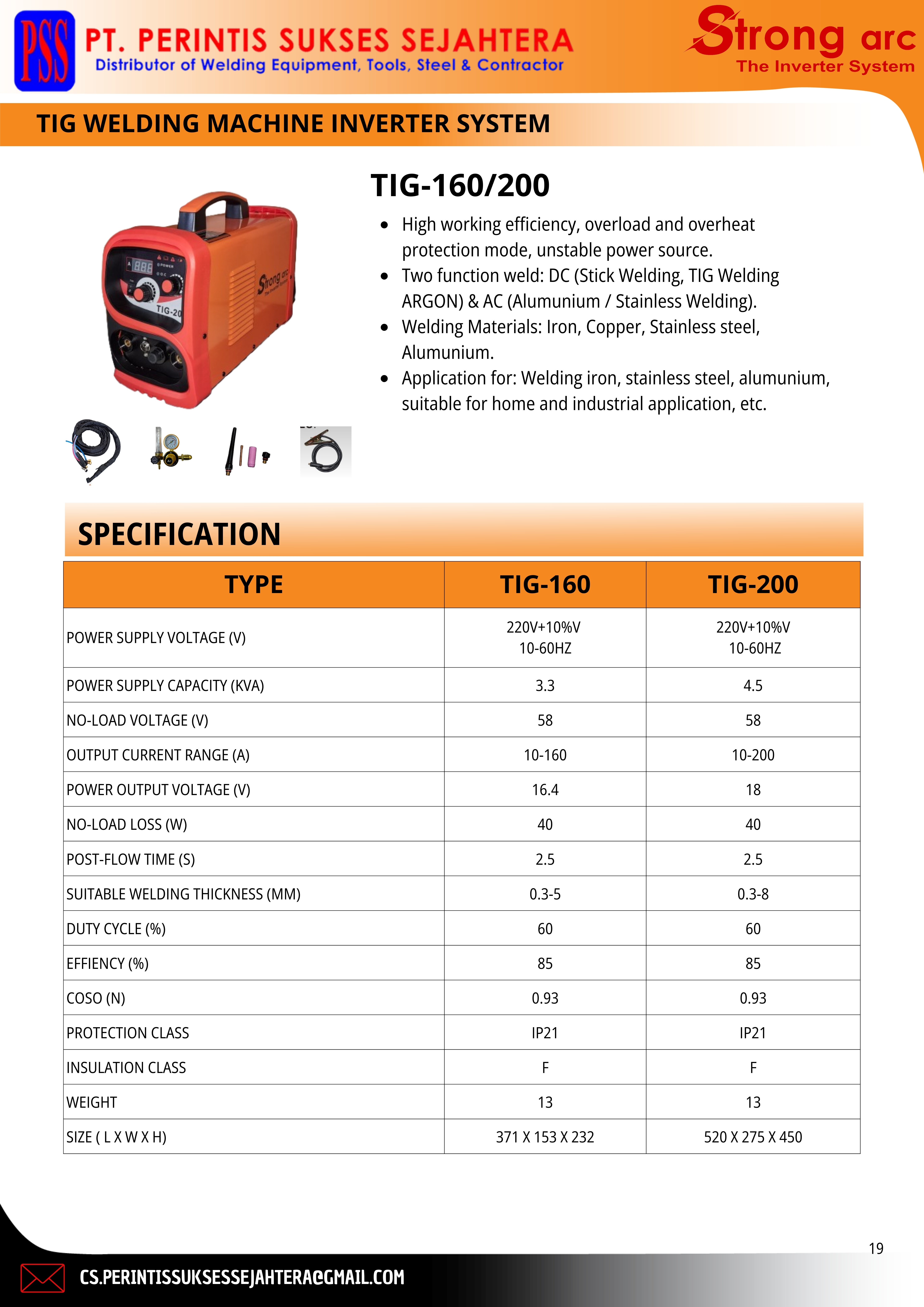

TIG-160/200

TIG/MMA, or TIG only Advanced IGBT inverter technology, energy-saving Melted tungsten electrode, non-contact HF arc start method, which avoids burning through the thin workspace Portable, energy-saving, light noise, easy to carry Gas after flow time can be matched between 1-10s, With O.C & O.H protection, for long-term using Capable of welding stainless steel and other easily oxidated nonferrous metal and alloy steel, such as MIG, TIG or other alloy.

TYPETIG-160TIG-200
INPUT VOLTAGE (V)1PH AC220V+15%, 50/60HZ1PH AC220V+15%, 50/60HZ
INPUT CURRENT (A)MMA : 5.3 / TIG : 3.3MMA : 35.8 / TIG : 26.4
INPUT POWER CAPACITY (KVA)MMA : 20.6 / TIG : 15MMA : 7.8 / TIG : 5.8
OUTPUT CURRENT RANGE (A)MMA : 10-140 / TIG : 10-160MMA : 20-180 / TIG : 10-200
GAS AFTER-FLOW TIME (S)10-Jan10-Jan
NO-LOAD VOLTAGE (V)5661
RATED DUTY CYCLE (%)6060
EFFICIENCY (%)8585
POWER FACTOR (COS dia.)0.730.73
ELECTRODE (MM)1.6-3.21.6-4.0
DIMENSIONS (MM)410x165x305410x165x305
WEIGHT (KG)1010
