IGBT
Digital Display
Simple Control
Gen Series can be using Genset
Arc Force Function Maintains Arc Stability
Hot Star Function Facilitates Arc Ignition
VRD (Voltage Reduction Device) Function
Over Current Protection.

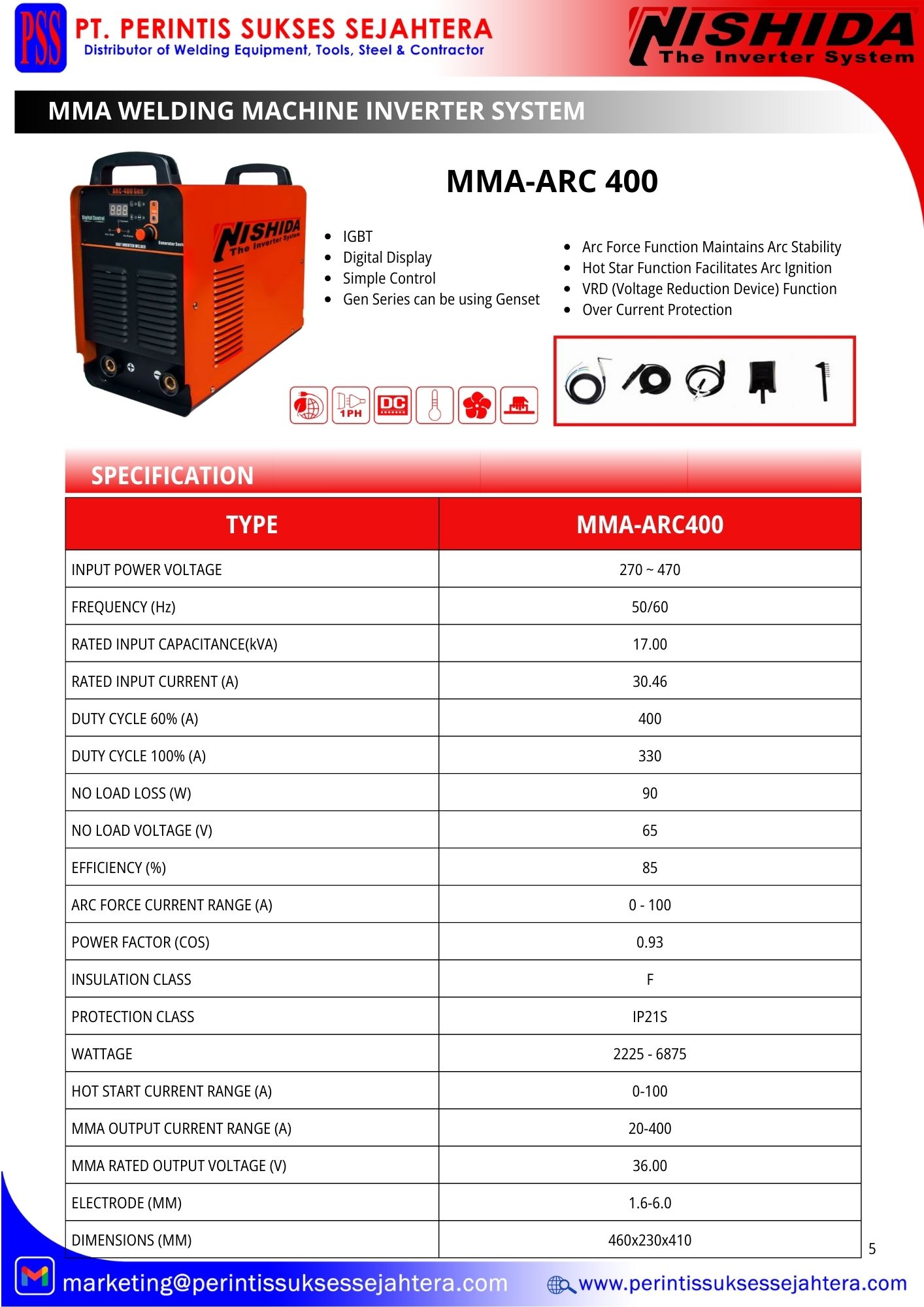

| TYPE | MMA-ARC400 |
| INPUT POWER VOLTAGE | 270 ~ 470 |
| FREQUENCY (Hz) | 50/60 |
| RATED INPUT CAPACITANCE(kVA) | 17 |
| RATED INPUT CURRENT (A) | 30.46 |
| DUTY CYCLE 60% (A) | 400 |
| DUTY CYCLE 100% (A) | 330 |
| NO LOAD LOSS (W) | 90 |
| NO LOAD VOLTAGE (V) | 65 |
| EFFICIENCY (%) | 85 |
| ARC FORCE CURRENT RANGE (A) | 0 - 100 |
| POWER FACTOR (COS) | 0.93 |
| INSULATION CLASS | F |
| PROTECTION CLASS | IP21S |
| WATTAGE | 2225 - 6875 |
| HOT START CURRENT RANGE (A) | 0-100 |
| MMA OUTPUT CURRENT RANGE (A) | 20-400 |
| MMA RATED OUTPUT VOLTAGE (V) | 36 |
| ELECTRODE (MM) | 1.6-6.0 |
| DIMENSIONS (MM) | 460x230x410 |
