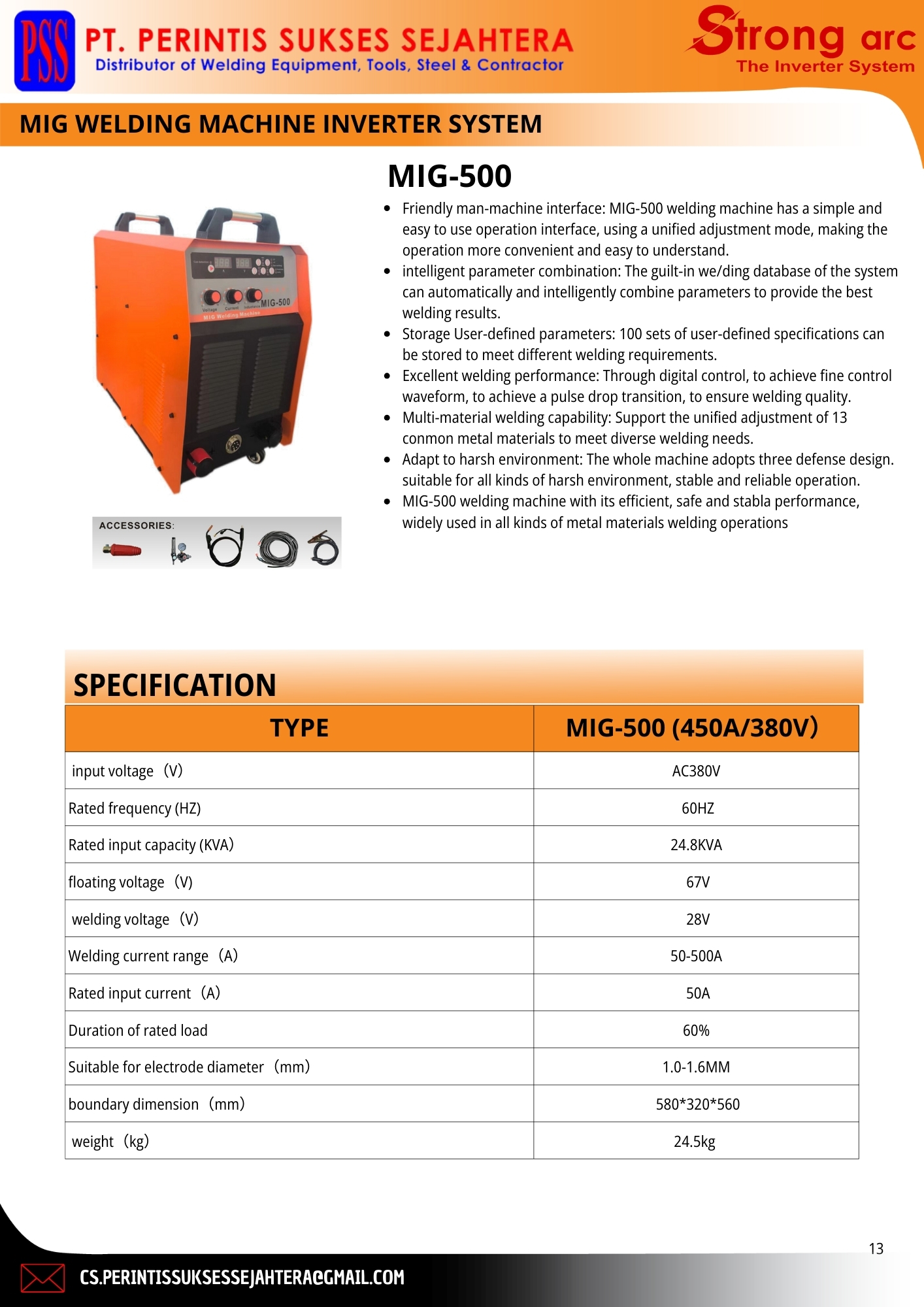

MIG-500

Friendly man-machine interface: MIG-500 welding machine has a simple and easy to use operation interface, using a unified adjustment mode, making the operation more convenient and easy to understand. intelligent parameter combination: The guilt-in we/ding database of the system can automatically and intelligently combine parameters to provide the best welding results. Storage User-defined parameters: 100 sets of user-defined specifications can be stored to meet different welding requirements. Excellent welding performance: Through digital control, to achieve fine control waveform, to achieve a pulse drop transition, to ensure welding quality. Multi-material welding capability: Support the unified adjustment of 13 conmon metal materials to meet diverse welding needs. Adapt to harsh environment: The whole machine adopts three defense design. suitable for all kinds of harsh environment, stable and reliable operation. MIG-500 welding machine with its efficient, safe and stabla performance, widely used in all kinds of metal materials welding operations

TYPEMIG-500 (450A/380V)
input voltage(V)AC380V
Rated frequency (HZ)60HZ
Rated input capacity (KVA)24.8KVA
floating voltage(V)67V
welding voltage(V)28V
Welding current range(A)50-500A
Rated input current(A)50A
Duration of rated load60%
Suitable for electrode diameter(mm)1.0-1.6MM
boundary dimension(mm)580*320*560
weight(kg)24.5kg
