Using PMW control technology, constant voltage (CV), constant current (CC), output control, welding current, and voltage can be exactly controlled. Built-in polarity converter: suitable for Wire Welding for flux (no gas) and MIG/MAG (gas) Welding. With auto protection function: to prevent over-current and over-heating, it makes the machine safe and reliable. Advanced inverter technology: high working frequency, high efficiency, and energy saving. With double closed loop system: arc stability Welding method: MIG/MAG and Lift TIG welding, using 2T/4T working mode, easy to operate. short circuit transfer waveform control: stable welding with little splashing. With a tri-proof design, ensure stability and reliability. Can use MIG wire welding 5Kg and 15Kg, can use normal MIG wire and flux core welding.

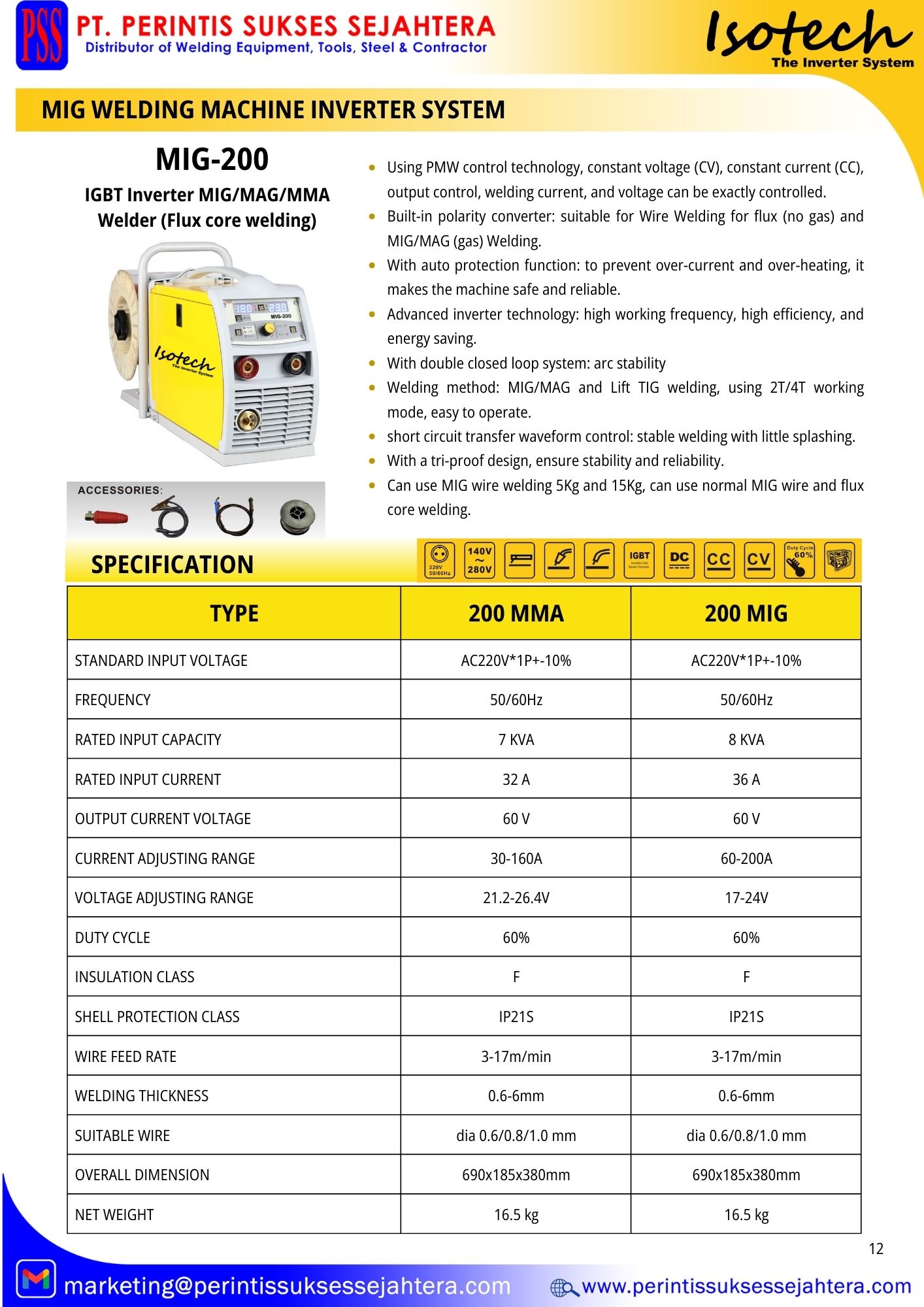

TYPE	MIG-200
STANDARD INPUT VOLTAGE	AC220V*1P+-10%
FREQUENCY	50/60Hz
RATED INPUT CAPACITY	8 KVA
RATED INPUT CURRENT	36 A
OUTPUT CURRENT VOLTAGE	60 V
CURRENT ADJUSTING RANGE	60-200A
VOLTAGE ADJUSTING RANGE	17-24V
DUTY CYCLE	60%
INSULATION CLASS	F
SHELL PROTECTION CLASS	IP21S
WIRE FEED RATE	3-17m/min
WELDING THICKNESS	0.6-6mm
SUITABLE WIRE	dia 0.6/0.8/1.0 mm
OVERALL DIMENSION	690x185x380mm
NET WEIGHT	16.5 kg
