Using PMW control technology, constant voltage (CV), constant current (CC), output control, welding current, and voltage can be exactly controlled. Built-in polarity converter: suitable for Wire Welding for flux (gales) With auto protection function: to prevent over-current and over-heating, makes the machine safe and reliable. Advanced inverter technology: high working frequency, high efficiency, and energy saving. short circuit transfer waveform control: stable welding with little splashing. With a tri-proof design, ensure stability and reliability in adverse circumstances.

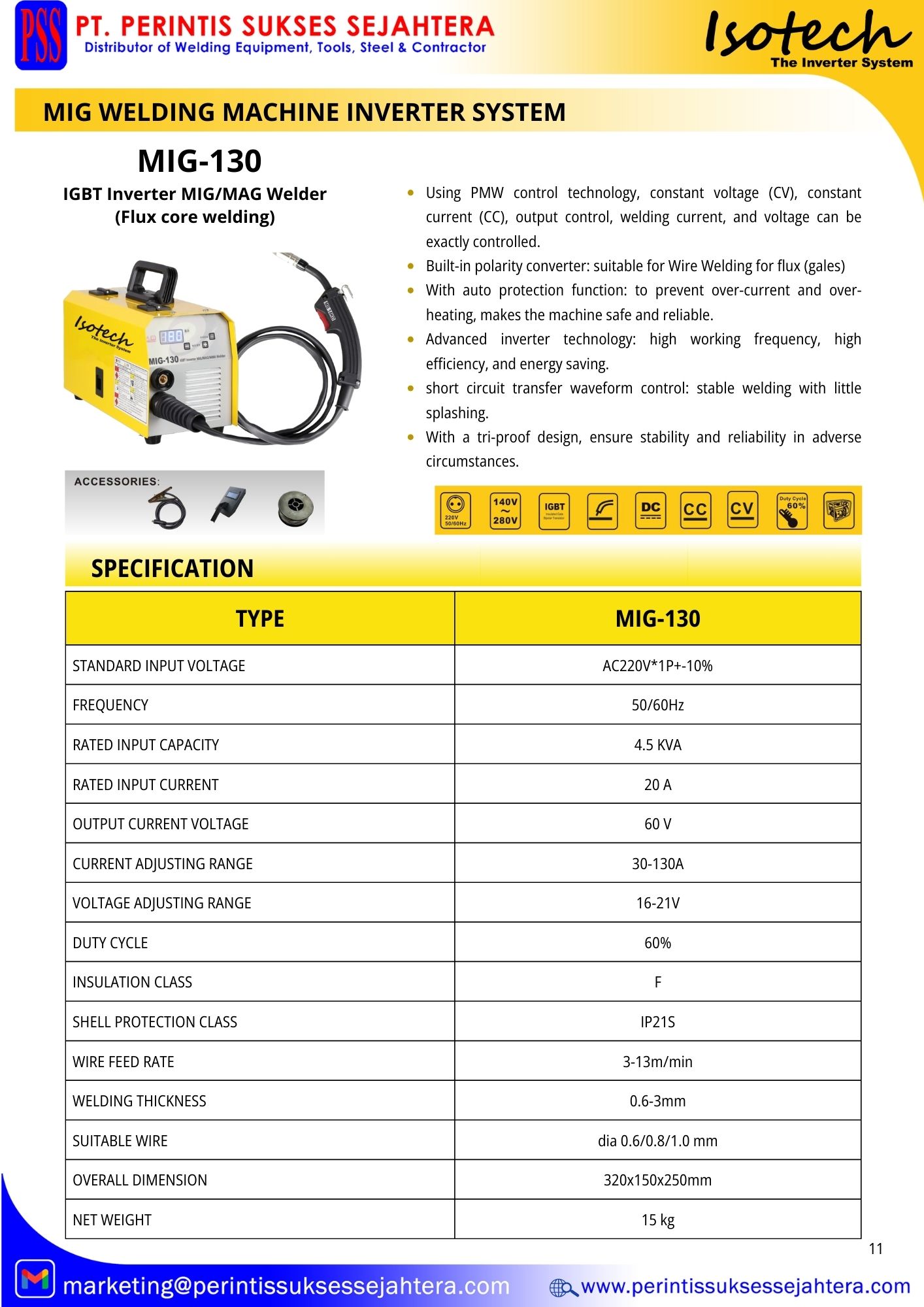

TYPE	MIG-130
STANDARD INPUT VOLTAGE	AC220V*1P+-10%
FREQUENCY	50/60Hz
RATED INPUT CAPACITY	4.5 KVA
RATED INPUT CURRENT	20 A
OUTPUT CURRENT VOLTAGE	60 V
CURRENT ADJUSTING RANGE	30-130A
VOLTAGE ADJUSTING RANGE	16-21V
DUTY CYCLE	60%
INSULATION CLASS	F
SHELL PROTECTION CLASS	IP21S
WIRE FEED RATE	3-13m/min
WELDING THICKNESS	0.6-3mm
SUITABLE WIRE	dia 0.6/0.8/1.0 mm
OVERALL DIMENSION	320x150x250mm
NET WEIGHT	15 kg
