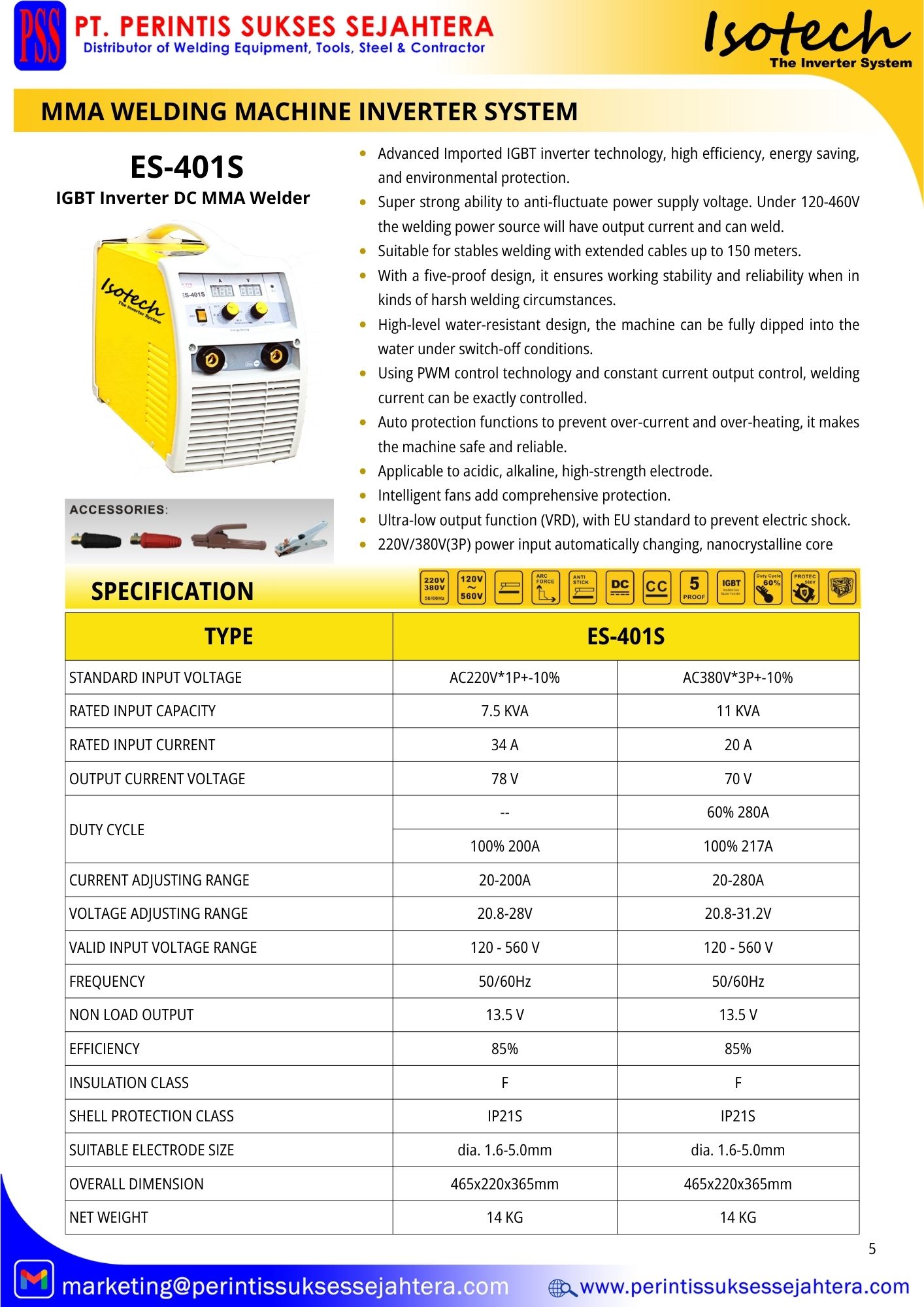

ES-401S

Advanced Imported IGBT inverter technology, high efficiency, energy saving, and environmental protection. Super strong ability to anti-fluctuate power supply voltage. Under 120-460V the welding power source will have output current and can weld. Suitable for stables welding with extended cables up to 150 meters. With a five-proof design, it ensures working stability and reliability when in kinds of harsh welding circumstances. High-level water-resistant design, the machine can be fully dipped into the water under switch-off conditions. Using PWM control technology and constant current output control, welding current can be exactly controlled. Auto protection functions to prevent over-current and over-heating, it makes the machine safe and reliable. Applicable to acidic, alkaline, high-strength electrode. Intelligent fans add comprehensive protection. Ultra-low output function (VRD), with EU standard to prevent electric shock. 220V/380V(3P) power input automatically changing, nanocrystalline core.

TYPEES-401S
STANDARD INPUT VOLTAGEAC220V*1P+-10%AC380V*3P+-10%
RATED INPUT CAPACITY7.5 KVA11 KVA
RATED INPUT CURRENT34 A20 A
OUTPUT CURRENT VOLTAGE78 V70 V
DUTY CYCLE--60% 280A
CURRENT ADJUSTING RANGE20-200A20-280A
VOLTAGE ADJUSTING RANGE20.8-28V20.8-31.2V
VALID INPUT VOLTAGE RANGE120 - 560 V120 - 560 V
FREQUENCY50/60Hz50/60Hz
NON LOAD OUTPUT13.5 V13.5 V
EFFICIENCY85%85%
INSULATION CLASSFF
SHELL PROTECTION CLASSIP21SIP21S
SUITABLE ELECTRODE SIZEdia. 1.6-5.0mmdia. 1.6-5.0mm
OVERALL DIMENSION465x220x365mm465x220x365mm
NET WEIGHT14 KG14 KG
