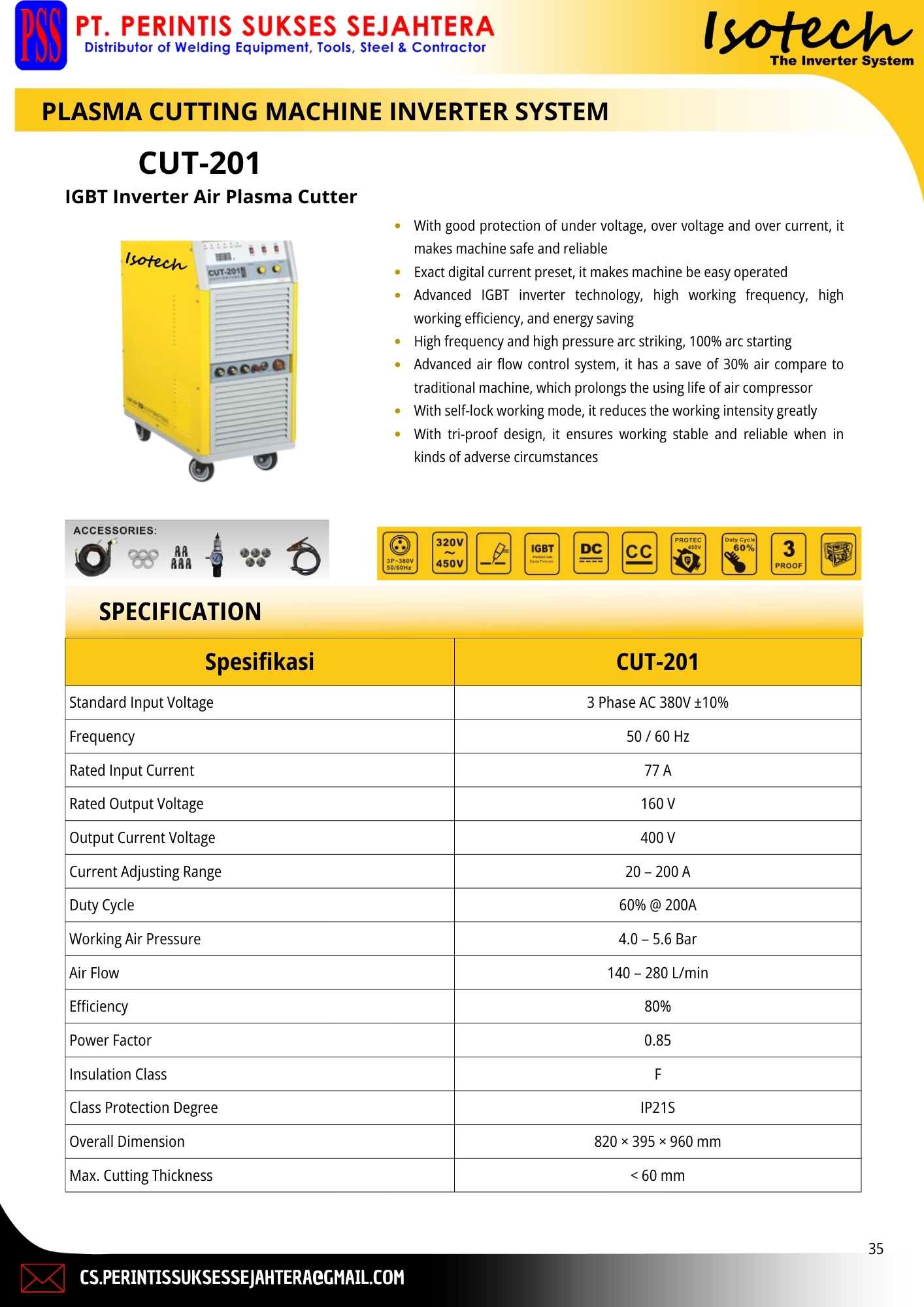

CUT-201

With auto protection function to prevent over-current and over-heating, it makes the machine safe and reliable. Exact digital current preset, it makes machine easy to operated. Advanced IGBT inverter technology, high working frequency, high efficiency and energy saving. High frequency and high preassure arc striking, 100% arc starting. Advanced air flow control system, able to a save of 30% air compare to traditional machine, which prolongs the using life of air compressor. With self-lock working mode, it reduces the working intensity greatly. With tri-proof design, it ensures working stable and reliable when in kinds of adverse condition. Build in CNC standart connector, air compressor. Adopting contact or non-contact high-frequency arc striking performance.

TYPECUT-201
STANDARD INPUT VOLTAGE3P AC 380V+-10%
FREQUENCY50/60Hz
RATED INPUT CURRENT77 A
RATED OUTPUT VOLTAGE160 V
OUTPUT CURRENT VOLTAGE400 V
CURRENT ADJUSTING RANGE20-200 A
DUTY CYCLE60 % 200 A
WORKING AIR PRESSURE4.0-6.0 Bar
AIR FLOW140-280L/MIN
EFFICIENCY80%
POWER FACTOR0.85
INSULATION CLASSF
CASE PROTECTION DEGREEIP21S
MAX. CUTTING THICKNESS<60mm
OVERALL DIMENSION820x395x960mm
WEIGHT71.5Kg
