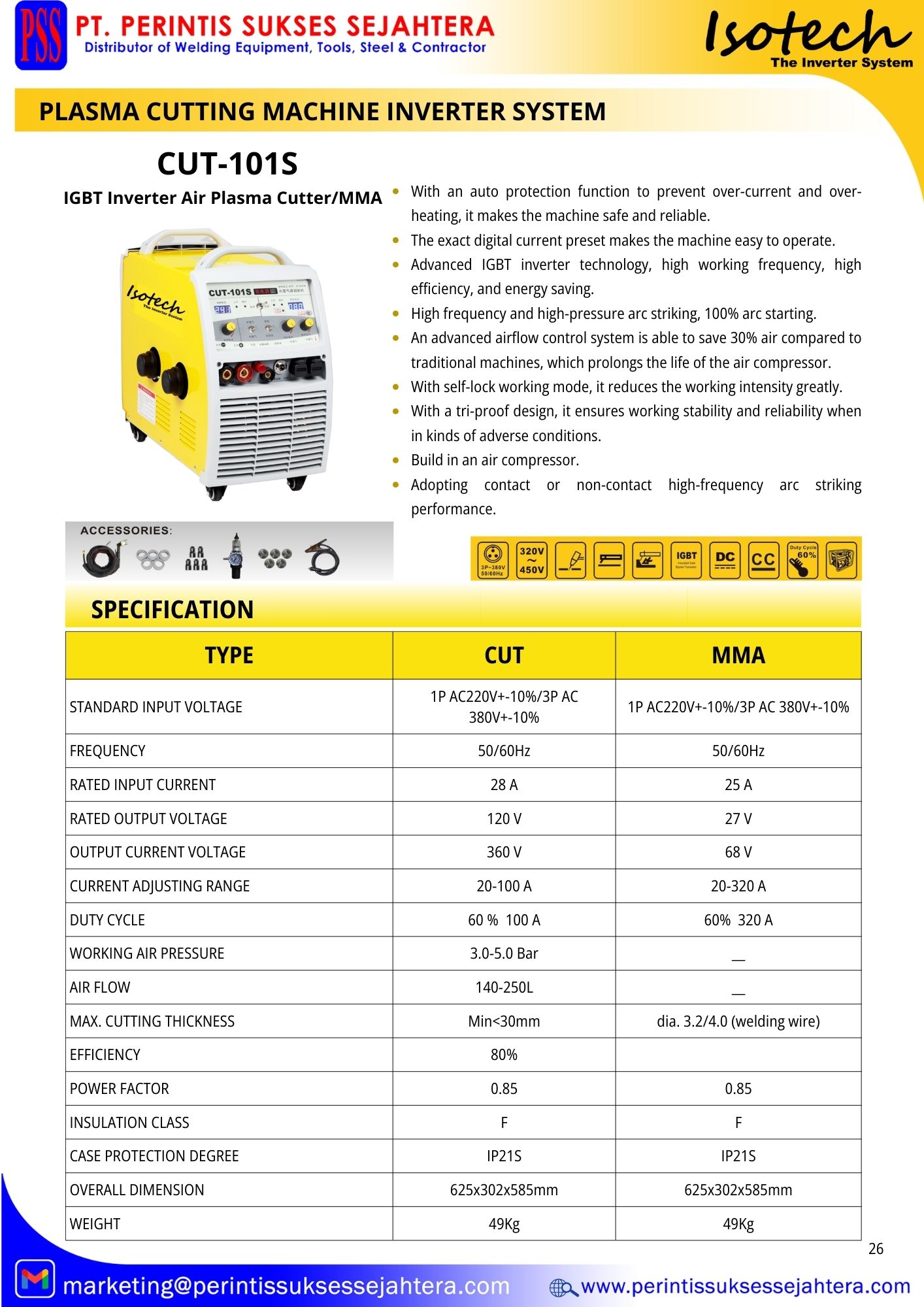

CUT-101S

With an auto protection function to prevent over-current and over-heating, it makes the machine safe and reliable. The exact digital current preset makes the machine easy to operate. Advanced IGBT inverter technology, high working frequency, high efficiency, and energy saving. High frequency and high-pressure arc striking, 100% arc starting. An advanced airflow control system is able to save 30% air compared to traditional machines, which prolongs the life of the air compressor. With self-lock working mode, it reduces the working intensity greatly. With a tri-proof design, it ensures working stability and reliability when in kinds of adverse conditions. Build in an air compressor. Adopting contact or non-contact high-frequency arc striking performance.

TYPECUT-101S
STANDARD INPUT VOLTAGE1P AC220V+-10%/3P AC 380V+-10%
FREQUENCY50/60Hz
RATED INPUT CURRENT28 A
RATED OUTPUT VOLTAGE120 V
OUTPUT CURRENT VOLTAGE360 V
CURRENT ADJUSTING RANGE20-100 A
DUTY CYCLE60 % 100 A
WORKING AIR PRESSURE3.0-5.0 Bar
AIR FLOW140-250L
MAX. CUTTING THICKNESSMin<30mm
EFFICIENCY80%
POWER FACTOR0.85
INSULATION CLASSF
CASE PROTECTION DEGREEIP21S
OVERALL DIMENSION625x302x585mm
WEIGHT49Kg
