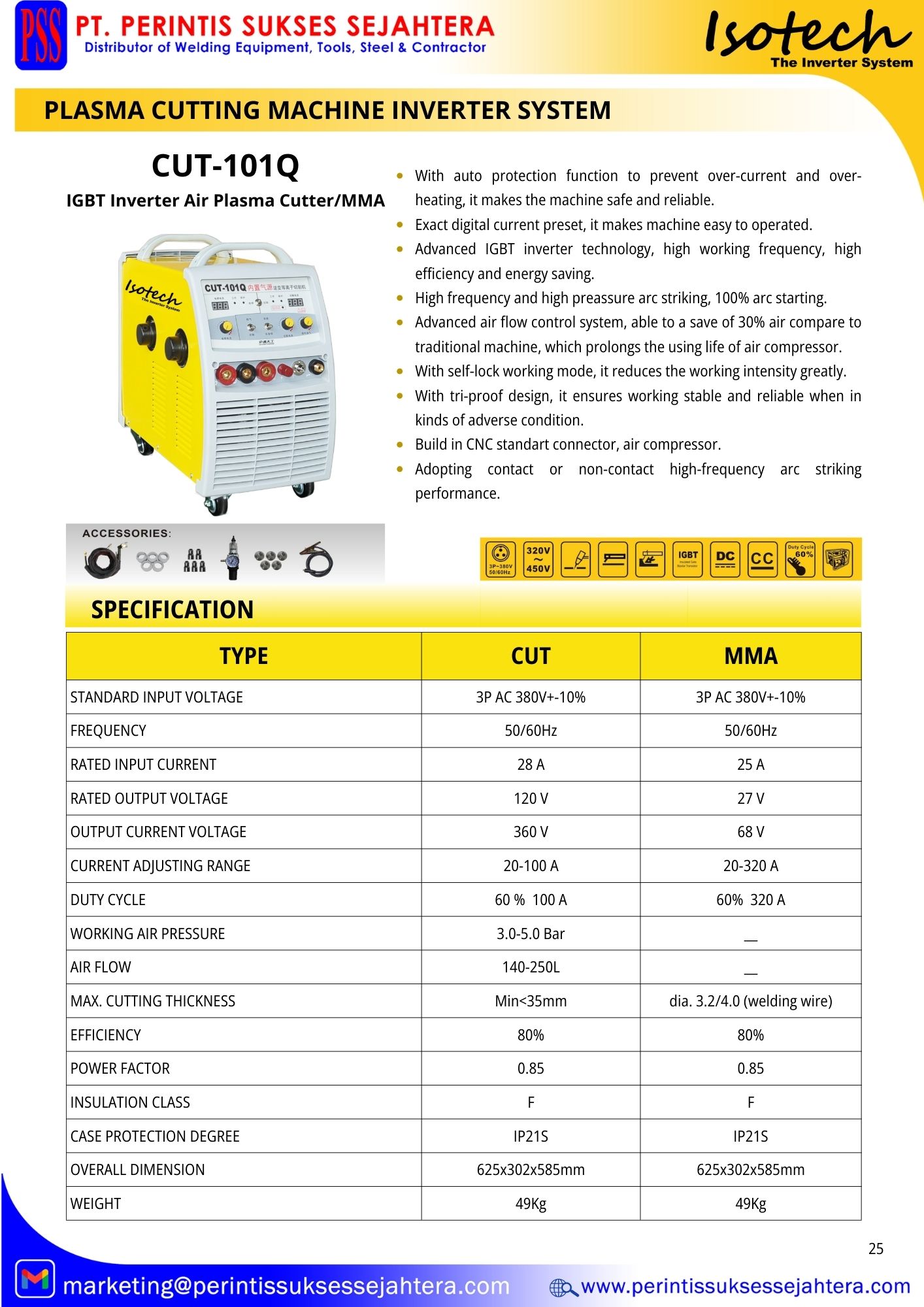

CUT-101Q

With auto protection function to prevent over-current and over-heating, it makes the machine safe and reliable. Exact digital current preset, it makes machine easy to operated. Advanced IGBT inverter technology, high working frequency, high efficiency and energy saving. High frequency and high pressure arc striking, 100% arc starting. Advance air flow control system, able to a save of 30% air compare to traditional machine, which prolongs the using life of air compressor. With self-lock working mode, it reduces the working intensity greatly. With tri-proof design, it ensures working stables and reliable when in kinds of adverse condition. Build in CNC standart connector. Adopting contact or non-contact high-frequency arc striking performance.

TYPECUT-100i
STANDARD INPUT VOLTAGE3 Phase AC380V+-10%
FREQUENCY50/60Hz
RATED INPUT CURRENT23 A
RATED OUTPUT VOLTAGE120 V
OUTPUT CURRENT VOLTAGE120 V
CURRENT ADJUSTING RANGE20-100 A
DUTY CYCLE80% 100A
WORKING AIR PRESSURE3.0-5.0 Bar
AIR FLOW140-250L/Min
EFFICIENCY80%
POWER FACTOR0.85
INSULATION CLASSF
CASE PROTECTION DEGREEIP21S
MAX. CUTTING THICKNESS< 40 mm
OVERALL DIMENSION600x355x605mm
WEIGHT38 KG
